Permit-ready sign drawings translate a business idea into a package that a property owner, fabricator, installer, and reviewing agency can evaluate. They show what is proposed, where it will be located, how large it is, how it relates to the building or site, and which technical details apply to the scope.
The exact package is not identical in every California jurisdiction. Sign type, size, location, structural conditions, illumination, and local procedures can change what must be submitted. The goal is not to add paperwork for its own sake. It is to give each reviewer enough coordinated information to make a decision and reduce avoidable corrections.
Begin With the Address and Authority Having Jurisdiction
Before drawings are developed, confirm the project address and the agency that reviews the work. A postal address does not always answer every jurisdiction question, especially near city limits or within properties governed by a special district or master sign program.
The site also needs a zoning and property-context check. The City of Stockton’s plan review guidance, for example, says that use, size, height, and location should be checked against zoning requirements before plans are submitted. Its sign standards explain that some sign types may require planning approvals in addition to a sign permit.
This early check keeps the drawing team from developing a package around an assumption that the reviewing agency cannot approve.
What a Cover Sheet Establishes
A cover sheet identifies the project and organizes the package. Depending on the jurisdiction and scope, it may include:
- Project name and site address
- Property owner, tenant, and applicant information
- Drawing index and revision history
- Project description and sign schedule
- Applicable codes or local standards identified by the design professional
- General notes and scope boundaries
- Professional seals or signatures when required
The cover sheet should not claim that every listed code applies in the same way to every sign. It should help reviewers understand the proposed work and locate supporting details.
Site Plans Show Location and Context
A site plan explains where a freestanding sign, building sign, or group of signs sits in relation to property lines, buildings, streets, driveways, parking areas, easements, and other relevant site features. The level of detail should match the project.
For a wall sign, the site plan may primarily establish the building and tenant location. For a monument or pylon sign, setbacks, visibility areas, utilities, landscaping, and vehicular circulation can become more important. For a multi-sign project, a sign schedule can connect each proposed sign to a labeled site location.
Measurements should come from reliable field information or approved source documents. Drawings should clearly distinguish verified dimensions from items that remain subject to field confirmation.

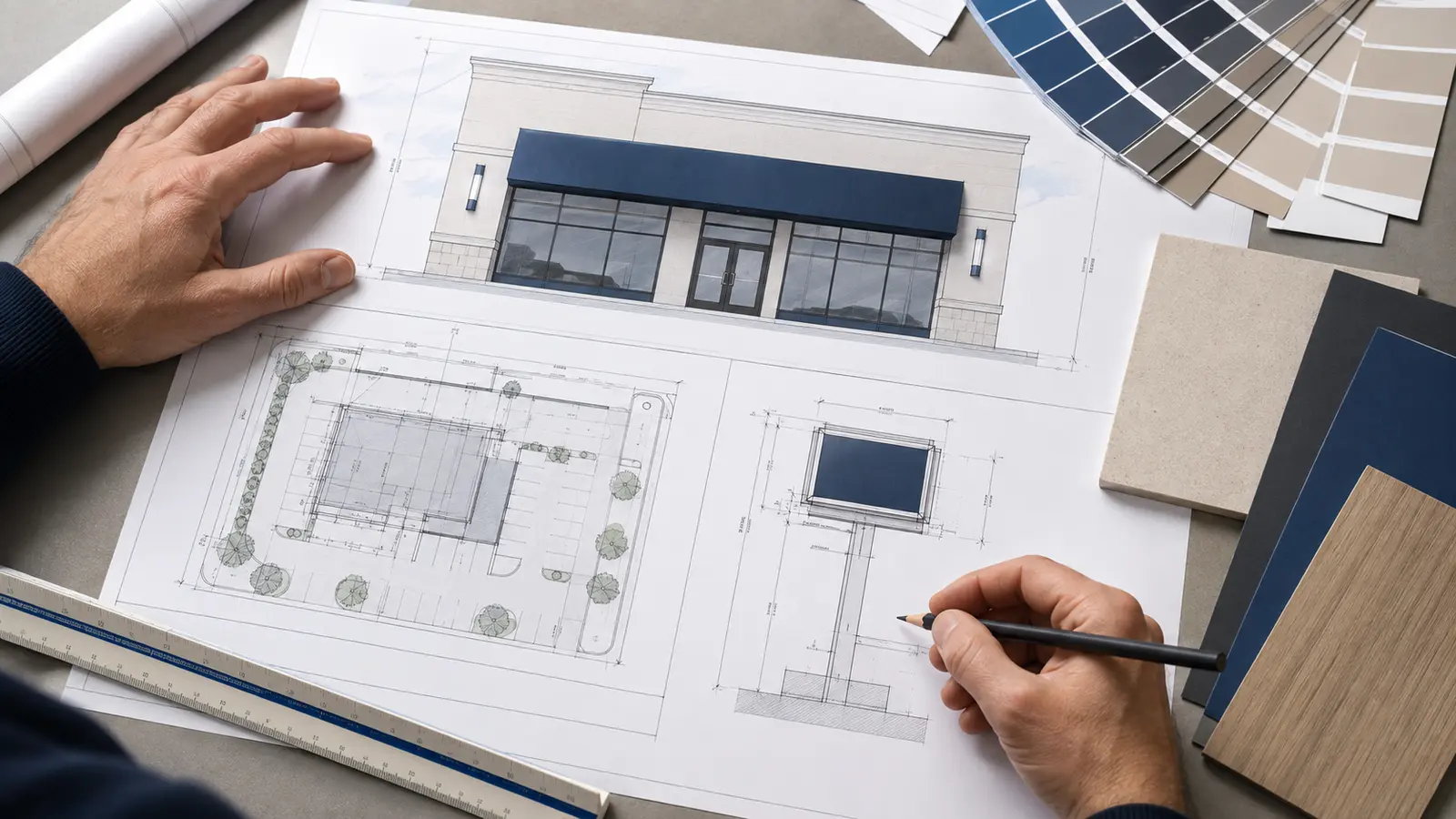

Elevations Explain Scale, Placement, and Appearance
Building elevations show the sign on the relevant facade. They help reviewers understand sign area, mounting height, relationship to architectural features, and overall placement. A useful elevation commonly identifies:
- Wall or tenant-frontage dimensions relevant to the calculation
- Sign width, height, area, and projection
- Distance from roof lines, wall edges, openings, and architectural features
- Existing signs to remain or be removed
- Colors, materials, and illumination method
- A scale and clear dimension strings
Renderings can help communicate appearance, but they do not replace scaled drawings and dimensions when those are required.
Sign Details Describe Construction and Attachment
Detail sheets explain how the sign is assembled and attached. The information varies by sign type. Channel letters may need sections through the letter, face and return materials, illumination components, raceway or direct-mount configuration, penetrations, and access. Cabinets may need frame, face, internal support, service access, and attachment details. Freestanding signs may require foundation and structural information.
These drawings should align with the proposed materials and actual fabrication method. Generic details that conflict with the sign schedule can create confusion during review and production.
AA Sign Image’s sign permits and drawings service supports site surveys, permit drawings, and coordination for commercial signage projects in California.
Structural Information Depends on the Scope
Some sign projects require structural calculations, engineered connections, foundation details, or a licensed design professional’s review. The need can depend on sign size, height, weight, wind exposure, support conditions, and local requirements.
California rules determine which professionals may prepare and sign particular documents, while the local building official determines what is required for the permit application. A project team should not assume that a detail copied from another site is sufficient for a different building or soil condition.
Electrical Information Supports Illuminated Signs
Illuminated signs may require electrical diagrams, circuit information, disconnect details, component listings, and coordination with the existing service. The exact requirements depend on the sign and jurisdiction.
Electrical drawings should identify the intended system without encouraging field improvisation. Installation and energized work belong to appropriately qualified personnel. California’s Contractors State License Board explains that electrical sign installation falls within the appropriate electrical or sign contractor classifications.
Landlord and Brand Standards Belong in the Same Review
Municipal approval does not replace landlord approval. A shopping center or managed property may have a sign program controlling letter height, colors, raceways, lighting, placement, or allowed sign types. A corporate brand package may introduce another set of specifications.
Permit-ready planning coordinates these layers before fabrication. When a brand standard conflicts with a landlord or municipal condition, the drawing set should reflect the approved resolution, not the first concept.
Digital Submittal Quality Matters
Many jurisdictions use electronic plan review, even when initial intake procedures vary. The City of Stockton instructs applicants to use properly formatted, flattened, unsecured PDF files for electronic plan check and notes that plan examiners may request changes for code compliance.
Before submittal, check page size, orientation, scale references, legibility, bookmarks if requested, file security, and revision naming. A correct design can still be delayed when files are incomplete, unreadable, or inconsistent.
A Practical Pre-Submittal Checklist
Before sending a sign package for review, confirm:
- The project address and jurisdiction are correct
- The sign type and scope match the application
- Site plan, elevations, and sign details agree
- Dimensions and sign-area calculations are consistent
- Existing and proposed signs are clearly identified
- Materials, colors, and illumination are described
- Structural and electrical documents are included when required
- Landlord or sign-program conditions are reflected
- Required signatures, seals, and supporting forms are present
- PDF files follow the reviewing agency’s format requirements
No checklist can replace the current instructions of the reviewing agency. Use it to catch coordination errors before submittal.
Questions Project Teams Commonly Ask
Are permit drawings the same as fabrication drawings?
They can overlap, but their purposes differ. Permit drawings demonstrate the proposed scope for agency review. Fabrication drawings may contain additional shop-level information needed to manufacture the sign. The project team should keep both coordinated.
Does every sign package need structural calculations?
No universal rule applies to every sign. Requirements depend on the sign, support, size, location, and reviewing agency. Confirm the need before finalizing the package.
Can drawings be submitted before landlord approval?
Procedures vary, but submitting a package that does not reflect the landlord’s approved criteria can lead to redesign. Coordinating property requirements first is usually more efficient.
