AA Sign Image, Inc.
Indoor & Outdoor LED Displays Across California
Engineered digital display systems for retail, fuel, hospitality, and corporate environments.
AA Sign Image designs, supplies, and installs LED display systems that deliver bright, reliable visibility across California. From indoor video walls to outdoor digital signage, we help brands choose the right pitch, cabinet, and performance setup for each site.
LED Display Solutions
We match each installation to the right pixel pitch, cabinet type, brightness level, and service access requirements so the finished display performs reliably in its real environment.
Indoor LED Displays
- Pixel pitch options: 1.26mm, 1.575mm, 1.875mm, 2.5mm, 3mm, 4mm, 5mm
- Lightweight design for faster installation
- Seamless cabinet integration
- High refresh rate for smoother video performance
- Pixel pitch options: 4mm, 6.67mm, 8mm, 10mm, 16mm
- Weatherproof aluminum enclosures rated for outdoor use
- High brightness up to 1200 nits for daylight visibility
- Ideal for gas stations, retail fronts, and highway billboards

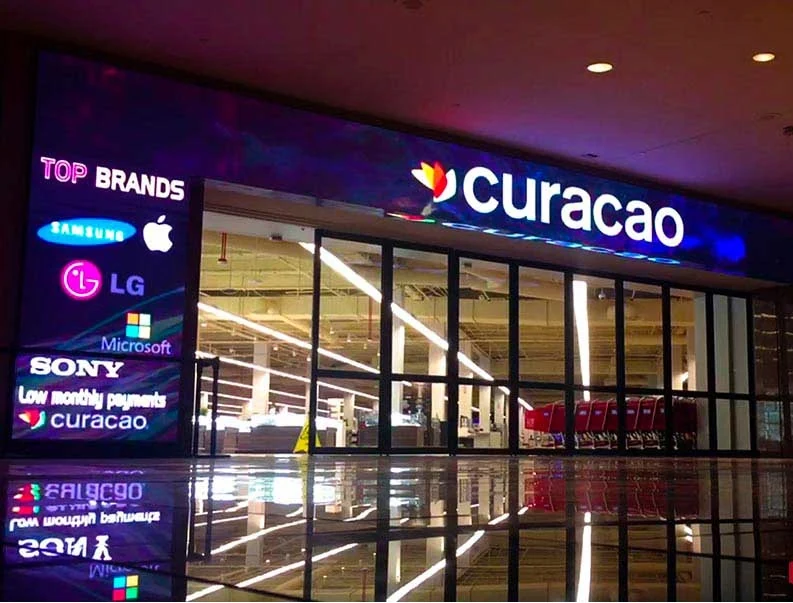

Indoor LED walls
Fine-pitch solutions for retail, stage, and corporate environments.

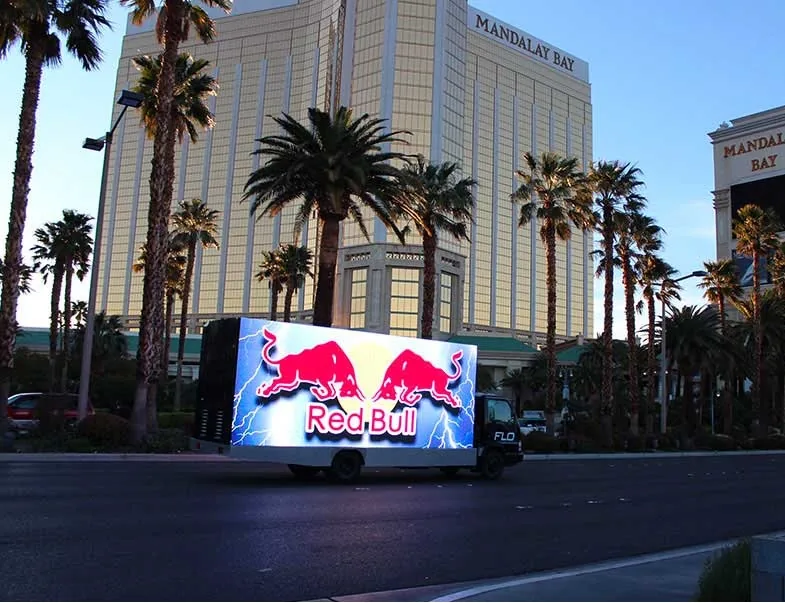

Outdoor LED billboards
Built for visibility, weather exposure, and roadside readability.
High refresh rate
Stable brightness and smooth content playback across applications.
Serviceable cabinets
Designed for cleaner maintenance and dependable long-term performance.
Technical specifications
Below is a summary of our most popular LED display modules. We organized these specifications as editable Elementor cards so your team can update each pitch or spec set without custom code.
3 mm
LED package: SMD
Density: 104,329 px/sq m
Module: 12.6 x 12.6 in
Matrix: 104×104
Weight: 3 LB (1.4 KG)
Drive: 1/13 constant current
Refresh: >=1920 Hz
Brightness: 1200 nits
IP rating: IP43 / IP43
4 mm
LED package: SMD
Density: 62,500 px/sq m
Module: 12.6 x 12.6 in
Matrix: 80×80
Weight: 3 LB (1.4 KG)
Drive: 1/10 constant current
Refresh: >=1920 Hz
Brightness: 1200 nits
IP rating: IP43 / IP43
6.67 mm
LED package: SMD
Density: 22,500 px/sq m
Module: 12.6 x 12.6 in
Matrix: 48×48
Weight: 3 LB (1.4 KG)
Drive: 1/6 constant current
Refresh: >=1920 Hz
Brightness: 1200 nits
IP rating: IP43 / IP43
8 mm
LED package: SMD
Density: 15,625 px/sq m
Module: 12.6 x 12.6 in
Matrix: 40×40
Weight: 3 LB (1.4 KG)
Drive: 1/6 constant current
Refresh: >=1920 Hz
Brightness: 1200 nits
IP rating: IP43 / IP43
10 mm
LED package: SMD
Density: 10,000 px/sq m
Module: 12.6 x 12.6 in
Matrix: 32×32
Weight: 3 LB (1.4 KG)
Drive: 1/4 constant current
Refresh: >=1920 Hz
Brightness: 1200 nits
IP rating: IP43 / IP43
Recent LED installations
Our LED display systems power indoor video walls, exterior digital signage, forecourt displays, and brand-driven visual installations across California. Every project is coordinated end-to-end to protect color accuracy, brightness, and long-term reliability.
- Pitch 2.5 mm | Size 33.6m x 2.88m | Indoor | California
- Pitch 3 mm | Size 60.4 m? | Indoor | California
- Pitch 4 mm | Size 30 m? | Indoor | California
- Pitch 5 mm | Size 20 m? | Indoor | California
- Pitch 10 mm | Size 18m x 15m | Outdoor | California
Installed for performance, clarity, and longevity
From high-traffic retail environments to larger-format outdoor screens, our team manages cabinet layout, brightness targets, engineering coordination, and final integration so the finished display looks sharp and performs reliably.
“AA Sign Image transformed our space with a custom LED video wall. The clarity, color, and overall performance exceeded expectations, and their team kept the process organized from start to finish.”
Event Center, San Jose
Why choose AA Sign Image for LED displays
AA Sign Image combines LED product knowledge with fabrication, installation, and local support so clients get one coordinated team from scope to final commissioning.
- C-45 licensed and UL certified manufacturing support
- Custom engineering and fabrication for unique site requirements
- Energy-efficient modules that lower long-term operating costs
- Fast delivery and local California support
- Trusted by fuel, retail, hospitality, and corporate brands
Let us handle your LED display project
From digital billboards to corporate video walls, AA Sign Image is ready to design, build, and support your next LED installation with precision and care.
